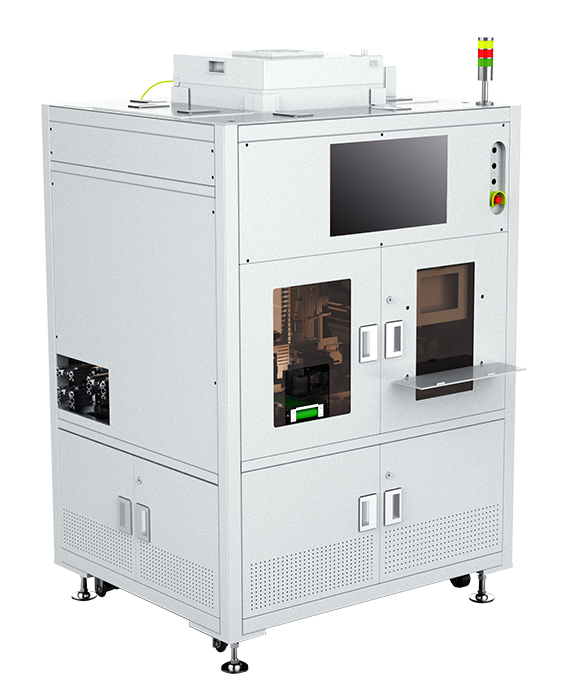

Fully Automatic Laser Solder Ball Spray Welding System

Product Description

The system integrates automatic feeding module, pre-soldering CCD positioning, high-speed solder ball spraying welding module, post-welding AOI inspection, automatic unloading module, etc. With general or customized fixtures, it can realize solder ball spraying welding and AOI inspection for different types of products.

The system can produce up to 5 solder balls per second, which has the advantages of fast speed, stable tin amount, non-contact welding, and no flux. The self-developed fiber laser cooperates with the automatic nozzle alignment to realize high-speed focusing of the system, which saves the nozzle replacement time, and improves the nozzle life and accuracy of spray position. It is widely used in the 3C electronics industry for solder ball spray welding of precision machine parts.

Product Features

1. Self-contained CCD positioning and post-welding AOI detection, automatic identification of product position and welding quality

2. Fast solder ball spraying speed, and high welding efficiency

3. Automatic laser energy detection and automatic nozzle alignment

4. Fully automatic loading and unloading;

5. Wide range of applications, compatible with spray welding of 0.25mm-0.889mm solder balls.

Range of Applications

Mainly used in 3C electronics industry, such as solder ball welding of WATCH, PAD, CCM module, semiconductor wafer and precision structural parts in other industries.
